Enhancing Data Transmission with Ethernet Slip Rings
Ethernet slip rings are crucial components in modern technology, facilitating high-speed data transmission across rotating interfaces. These specialized slip rings ensure that Ethernet signals are transmitted without interruption, maintaining signal integrity even in applications that require continuous rotation. The ability to transmit data reliably and at high speeds is essential for many modern applications, including surveillance systems, wind turbines, robotics, and automated machinery. Custom slip rings, specifically designed to handle Ethernet signals, play a vital role in these scenarios by reducing signal loss and minimizing electrical noise. Grand Slip Ring’s offerings in Ethernet slip rings are highly regarded for their advanced design and robust construction, ensuring optimal performance and reliability in demanding environments. By integrating custom slip rings tailored to specific application needs, industries can achieve enhanced efficiency and operational stability.
What are Ethernet Slip Rings?
Definition and Working Principle of Ethernet Slip Rings
Ethernet slip rings are specialized types of slip rings designed to facilitate the transmission of Ethernet signals across rotating interfaces. Traditional slip rings are used to transmit power and simple electrical signals, but Ethernet slip rings are engineered to handle the high-frequency signals required for network communications. These slip rings are essential in applications where devices must rotate continuously while maintaining a reliable Ethernet connection.
The working principle of an Ethernet slip ring involves a set of conductive rings and brushes. The conductive rings are mounted on the rotating part of the system, while the brushes remain stationary. As the device rotates, the brushes maintain continuous contact with the rings, allowing for uninterrupted transmission of Ethernet signals. The design and materials used in Ethernet slip rings are critical to maintaining signal integrity and ensuring high-speed data transmission.

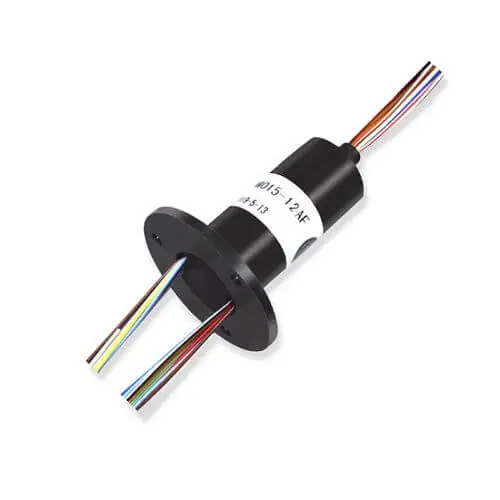

In a capsule slip ring, this entire mechanism is housed within a compact cylindrical enclosure, which is particularly advantageous for applications where space is limited. The compact design of a capsule slip ring makes it ideal for integrating Ethernet slip ring functionality into small, space-constrained devices while still ensuring reliable performance.
Key Benefits: High-Speed Data Transmission, Reliability, and Minimal Signal Loss
High-Speed Data Transmission
One of the primary benefits of Ethernet slip rings is their ability to transmit high-speed data. Ethernet networks typically operate at speeds ranging from 100 Mbps to 10 Gbps, and maintaining these speeds across a rotating interface requires specialized design and materials. Ethernet slip rings are engineered to handle these high data rates without compromising signal quality. This capability is essential for applications such as real-time video surveillance, industrial automation, and telecommunications, where high-speed data transmission is critical.
For instance, in a surveillance system, an Ethernet slip ring ensures that high-definition video feeds are transmitted seamlessly from rotating cameras to the monitoring station. The ability to maintain high-speed data transmission even as the camera rotates allows for continuous 360-degree surveillance without any loss of video quality.
Reliability
Reliability is another key benefit of Ethernet slip rings. These components are designed to operate continuously for long periods without failure, which is essential for applications where downtime is not an option. High-quality contact materials, such as gold-gold or silver-graphite contacts, are used to ensure consistent performance and durability. These materials provide excellent conductivity and are resistant to wear and corrosion, which helps maintain reliable signal transmission over the lifespan of the slip ring.
In industrial automation, for example, Ethernet slip rings are used in rotating machinery to transmit control signals and data. The reliability of the slip ring ensures that the machinery operates smoothly and efficiently, minimizing the risk of unexpected downtime and maintenance costs.
Minimal Signal Loss
Ethernet slip rings are designed to minimize signal loss and electrical noise, which is critical for maintaining data integrity. Signal loss can result in data errors and reduced network performance, which can be detrimental in applications that require precise and accurate data transmission. Advanced contact technologies and materials are used to reduce contact resistance and minimize electrical noise, ensuring that the Ethernet signals are transmitted with minimal loss.
In telecommunications, where maintaining high data integrity is crucial, Ethernet slip rings play a vital role. They enable the continuous rotation of antennas and other communication equipment while ensuring that the data signals remain clear and accurate. This is essential for maintaining reliable communication links, especially in environments with high levels of electromagnetic interference.
Ethernet slip rings are essential components in modern technology, enabling high-speed data transmission and reliable performance across rotating interfaces. Their ability to handle high-frequency Ethernet signals with minimal signal loss and electrical noise makes them indispensable in applications such as surveillance systems, industrial automation, and telecommunications. The compact design of capsule slip rings further enhances their versatility, allowing them to be integrated into space-constrained environments without compromising performance. By leveraging the advanced design and materials of Ethernet slip rings, industries can achieve the reliable and efficient data transmission necessary for today’s high-tech applications.
Applications of Ethernet Slip Rings
Ethernet slip rings are integral components in various high-tech and industrial applications where the seamless transmission of high-speed data is crucial. These slip rings ensure that Ethernet signals are transmitted reliably across rotating interfaces, which is essential for maintaining continuous operation and data integrity. This section explores the key applications of Ethernet slip rings in surveillance systems, offshore wind turbines, robotics, and automated machinery, highlighting the benefits they offer in these contexts.
Surveillance Systems
In surveillance systems, Ethernet slip rings are vital for enabling continuous 360-degree rotation of cameras without losing connection or data integrity. Modern surveillance systems often rely on high-definition video feeds that require uninterrupted, high-speed data transmission to monitoring stations. Ethernet slip rings facilitate this by allowing the camera to rotate continuously while maintaining a stable and reliable Ethernet connection.
Benefits in Surveillance Systems:
Continuous Rotation: Ensures comprehensive coverage and monitoring without any blind spots.
High Data Integrity: Maintains the quality of high-definition video feeds, ensuring clear and accurate surveillance footage.
Reduced Maintenance: High-quality materials and advanced design minimize wear and tear, leading to longer operational life and less frequent maintenance.
Offshore Wind Turbines
Offshore wind turbines operate in harsh environmental conditions where reliability and durability are paramount. Ethernet slip rings are used in these turbines to transmit data from sensors on the rotating blades to the stationary control systems. This data includes critical information about the turbine’s performance, such as wind speed, blade pitch, and rotational speed, which is essential for optimizing energy production and ensuring the safety and efficiency of the turbine.
Benefits in Offshore Wind Turbines:
Continuous Rotation: Allows for the continuous collection of performance data, facilitating real-time monitoring and adjustments.
High Data Integrity: Ensures that data from various sensors is transmitted accurately and reliably, which is crucial for effective turbine management.
Reduced Maintenance: The robust construction of Ethernet slip rings makes them suitable for harsh offshore environments, reducing the need for frequent maintenance and repairs.
Robotics
In robotics, Ethernet slip rings play a crucial role in transmitting control signals and data between stationary and rotating parts of the robot. This is essential for ensuring precise and coordinated movements, which are critical in industrial automation, medical robotics, and other advanced robotic applications. The ability to transmit high-speed data reliably allows robots to perform complex tasks with accuracy and efficiency.
Benefits in Robotics:
Continuous Rotation: Enables the robotic arm or joint to rotate freely, providing greater flexibility and range of motion.
High Data Integrity: Ensures that control signals and feedback data are transmitted accurately, which is vital for the precise operation of robotic systems.
Reduced Maintenance: Durable materials and advanced contact technology reduce the wear and tear on the slip ring, leading to longer service life and less frequent maintenance.
Automated Machinery
Automated machinery in manufacturing and assembly lines relies on Ethernet slip rings to maintain seamless communication between rotating and stationary components. These slip rings enable the transmission of control signals, power, and data, ensuring that the machinery operates smoothly and efficiently. High-speed data transmission is particularly important in automated systems where real-time communication and quick response times are critical for productivity.
Benefits in Automated Machinery:
Continuous Rotation: Allows machinery components to rotate continuously without interrupting data transmission, ensuring smooth operation.
High Data Integrity: Maintains the accuracy and reliability of control signals and data, which is essential for the precise functioning of automated systems.
Reduced Maintenance: The high durability and reliability of Ethernet slip rings minimize the need for maintenance, reducing downtime and operational costs.
Ethernet slip rings are essential components in a variety of high-tech and industrial applications, enabling reliable high-speed data transmission across rotating interfaces. In surveillance systems, they ensure continuous 360-degree rotation of cameras with high data integrity. Offshore wind turbines benefit from their ability to transmit critical performance data in harsh environments. In robotics, they enable precise control and feedback, while in automated machinery, they ensure seamless communication and efficient operation. The continuous rotation, high data integrity, and reduced maintenance offered by Ethernet slip rings make them indispensable in these applications, driving efficiency and reliability in modern technology.
Overview of Grand Slip Ring’s Ethernet Slip Ring Offerings
Grand Slip Ring provides a diverse range of Ethernet slip rings designed to meet the demanding needs of various applications. These slip rings are engineered to ensure high-speed data transmission, reliability, and minimal signal loss. In this section, we will take a detailed look at different models offered by Grand Slip Ring, highlighting their key specifications and features, and explaining the benefits of their advanced contact materials and robust construction.
Detailed Look at Different Models Offered
Grand Slip Ring’s Ethernet slip rings are available in multiple models, each tailored to specific requirements. These models vary in terms of size, number of channels, data transmission capabilities, and environmental resilience, offering solutions for a wide range of technical needs.
1. Model EHM022
Size: Outer diameter of 22mm
Number of Channels: 4 Ethernet channels
Data Rate: Supports up to 1 Gbps Ethernet
Features: Compact design, gold-gold contact technology, high rotational speed up to 300 rpm
Applications: Ideal for small to medium-sized applications where high-speed data transmission is required, such as in compact robotic systems and surveillance cameras.
2. Model EHM025
Size: Outer diameter of 25mm
Number of Channels: 6 Ethernet channels
Data Rate: Supports up to 10 Gbps Ethernet
Features: Advanced contact technology, low electrical noise, IP65 rated for dust and water resistance
Applications: Suitable for industrial automation and outdoor surveillance systems requiring robust performance in harsh environments.
3. Model EHG2578
Size: Outer diameter of 30mm
Number of Channels: 8 Ethernet channels
Data Rate: Supports up to 10 Gbps Ethernet
Features: High data integrity, robust construction, IP67 rated for enhanced environmental protection
Applications: Ideal for use in offshore wind turbines and other renewable energy applications where high data integrity and environmental resilience are critical.
4. Model EHG3899
Size: Outer diameter of 38mm
Number of Channels: 12 Ethernet channels
Data Rate: Supports up to 40 Gbps Ethernet
Features: Superior contact materials, high-speed data transmission, customizable configurations
Applications: Designed for complex applications in aerospace and advanced telecommunications systems, where maximum data throughput and reliability are essential.
5. Model EHG50120
Size: Outer diameter of 50mm
Number of Channels: 16 Ethernet channels
Data Rate: Supports up to 40 Gbps Ethernet
Features: Multi-channel support, high durability, advanced shielding for electromagnetic interference (EMI) protection
Applications: Suitable for high-performance industrial machinery and critical communication systems requiring extensive data channels and robust EMI protection.
6. Model EHG60135
Size: Outer diameter of 60mm
Number of Channels: 20 Ethernet channels
Data Rate: Supports up to 40 Gbps Ethernet
Features: Extensive channel count, superior contact materials, IP68 rated for maximum environmental protection
Applications: Ideal for highly demanding applications in offshore and marine environments, providing maximum durability and performance.
Key Specifications and Features of Each Model
Grand Slip Ring’s Ethernet slip rings are characterized by their advanced specifications and features that ensure superior performance and reliability in various applications.
Data Rate: The data rate capabilities range from 1 Gbps to 40 Gbps, catering to applications with varying bandwidth requirements.
Channel Count: Models offer different numbers of Ethernet channels, from 4 to 16, to accommodate diverse data transmission needs.
Size and Design: The slip rings are available in compact designs with outer diameters ranging from 20mm to 60mm, making them suitable for both space-constrained and large-scale applications.
Environmental Protection: With IP65 to IP67 ratings, these slip rings are designed to withstand harsh environmental conditions, ensuring reliable performance in demanding applications.
Benefits of Advanced Contact Materials and Robust Construction
Advanced Contact Materials
Grand Slip Ring uses high-quality contact materials such as gold-gold and silver-graphite, which provide excellent conductivity and reduce electrical noise. These materials ensure reliable signal transmission, even at high data rates, and offer superior wear resistance, extending the operational life of the slip rings.
Gold-Gold Contacts: Provide low contact resistance and high conductivity, ideal for high-speed data transmission and minimal signal loss.
Silver-Graphite Contacts: Offer a balance of performance and cost-effectiveness, suitable for applications where both durability and affordability are important.
Robust Construction
The robust construction of Grand Slip Ring’s Ethernet slip rings ensures they can withstand the mechanical stresses and environmental challenges of various applications. Features such as durable housings, advanced sealing technologies, and precision engineering contribute to their high reliability and long service life.
Durable Housings: Made from materials like anodized aluminum or stainless steel, these housings protect the internal components from dust, moisture, and mechanical damage.
Advanced Sealing Technologies: IP65 to IP67 ratings ensure that the slip rings are resistant to water and dust ingress, making them suitable for outdoor and harsh industrial environments.
Precision Engineering: Ensures smooth rotation, minimal maintenance, and consistent performance, even in high-vibration settings.
Grand Slip Ring’s Ethernet slip rings are designed to meet the diverse needs of modern applications, offering high-speed data transmission, reliability, and minimal signal loss. The detailed specifications and unique features of each model cater to various technical requirements, from compact robotic systems to advanced telecommunications and renewable energy applications. The use of advanced contact materials and robust construction ensures that these slip rings deliver consistent, high-quality performance, making them a reliable choice for any application requiring continuous rotation and high data integrity.
Selecting the Right Ethernet Slip Ring
Selecting the right Ethernet slip ring for your application is crucial to ensure optimal performance and reliability. The choice of the appropriate slip ring involves considering several factors, including data transmission requirements, environmental conditions, and mechanical constraints. This section provides a detailed guide on these factors and offers practical tips for choosing the most suitable Ethernet slip ring for specific applications. Additionally, it highlights the importance of consulting with experts and reviewing performance data.
Factors to Consider
Data Transmission Requirements
The primary function of an Ethernet slip ring is to ensure reliable high-speed data transmission across rotating interfaces. Key considerations for data transmission requirements include:
Bandwidth: Determine the data rate that your application requires. Ethernet slip rings are available in different models that support varying bandwidths, from 1 Gbps to 40 Gbps. For applications involving high-definition video streaming or real-time data processing, higher bandwidth models are essential.
Channel Count: Assess the number of Ethernet channels needed. Applications with multiple data streams may require slip rings with higher channel counts to ensure efficient data transmission without bottlenecks.
Signal Integrity: Evaluate the importance of maintaining high signal integrity. Applications in telecommunications and medical devices, for instance, require minimal signal loss and low electrical noise to ensure data accuracy and reliability.
Environmental Conditions
The operating environment of the Ethernet slip ring can significantly impact its performance and durability. Key environmental factors to consider include:
Temperature Range: Ensure that the slip ring can operate within the temperature range of your application. Some slip rings are designed to function in extreme temperatures, both high and low.
Humidity and Moisture: For applications exposed to high humidity or direct moisture, such as offshore wind turbines or outdoor surveillance systems, select a slip ring with appropriate IP (Ingress Protection) ratings. An IP65 or higher rating indicates good protection against dust and water ingress.
Vibration and Shock: In environments subject to high vibration or mechanical shock, such as industrial machinery or aerospace applications, choose an Ethernet slip ring designed to endure these stresses without compromising performance.
Mechanical Constraints
Mechanical constraints also play a vital role in selecting the right Ethernet slip ring. Consider the following:
Size and Space Constraints: Assess the available space within your system for the slip ring. Capsule slip rings are valued for their compact design, making them ideal for applications with limited space.
Rotational Speed: Identify the maximum rotational speed of your application. Slip rings are designed to operate at specific speeds, so selecting one that can handle your system’s speed without compromising performance is crucial.
Durability: Ensure the slip ring is constructed with durable materials that can withstand the mechanical stresses of your application. Advanced contact materials like gold-gold or silver-graphite and robust housing materials such as anodized aluminum or stainless steel are essential for long-term reliability.
Tips for Choosing the Most Suitable Ethernet Slip Ring for Specific Applications
1. Define Your Application Requirements Clearly
Start by clearly defining all the requirements of your application. Create a detailed list of the necessary specifications, including the type of signals, number of channels, rotational speed, and environmental conditions. This will serve as a reference when evaluating different Ethernet slip ring options.
2. Prioritize Quality and Reliability
When choosing an Ethernet slip ring, prioritize quality and reliability over cost. Investing in a high-quality slip ring ensures long-term performance and reduces the risk of failure and maintenance costs. Look for slip rings with advanced contact materials and robust construction.
3. Utilize Datasheets and Technical Support
Make use of datasheets and technical support offered by manufacturers. Datasheets provide detailed information about the specifications and performance characteristics of the slip ring. Technical support can assist with any questions or concerns you may have during the selection process.
4. Test Prototypes
If possible, test prototypes of the selected slip ring in your actual application environment. This allows you to evaluate the slip ring’s performance under real-world conditions and make any necessary adjustments before full-scale implementation.
Importance of Consulting with Experts and Reviewing Performance Data
Consulting with experts and utilizing resources like datasheets and technical support is crucial for making an informed decision. Experts can provide tailored advice based on your specific needs and help you navigate the technical complexities of choosing the right Ethernet slip ring. Additionally, reviewing performance data offers valuable insights into the slip ring’s capabilities and reliability.
Consult with Experts: Engage with slip ring manufacturers or suppliers who have expertise in your specific industry. They can provide valuable insights and recommendations based on their experience and the technical capabilities of their products. For example, manufacturers like Grand Slip Ring offer a range of Ethernet slip rings and can help identify the best fit for your needs.
Review Performance Data: Performance data and specifications provided by the manufacturer are essential for understanding the capabilities and limitations of the slip ring. Pay close attention to details such as data rate capabilities, number of channels, contact materials, and environmental ratings. Ensure that the slip ring meets or exceeds your application’s requirements.
Selecting the right Ethernet slip ring involves a thorough understanding of your application requirements, environmental conditions, and mechanical constraints. By defining your needs clearly, prioritizing quality, utilizing datasheets, and consulting with experts, you can make an informed decision that ensures optimal performance and reliability. Ethernet slip rings are critical components in many modern systems, and selecting the right one will enhance your system’s efficiency and longevity, providing seamless high-speed data transmission across rotating interfaces.
